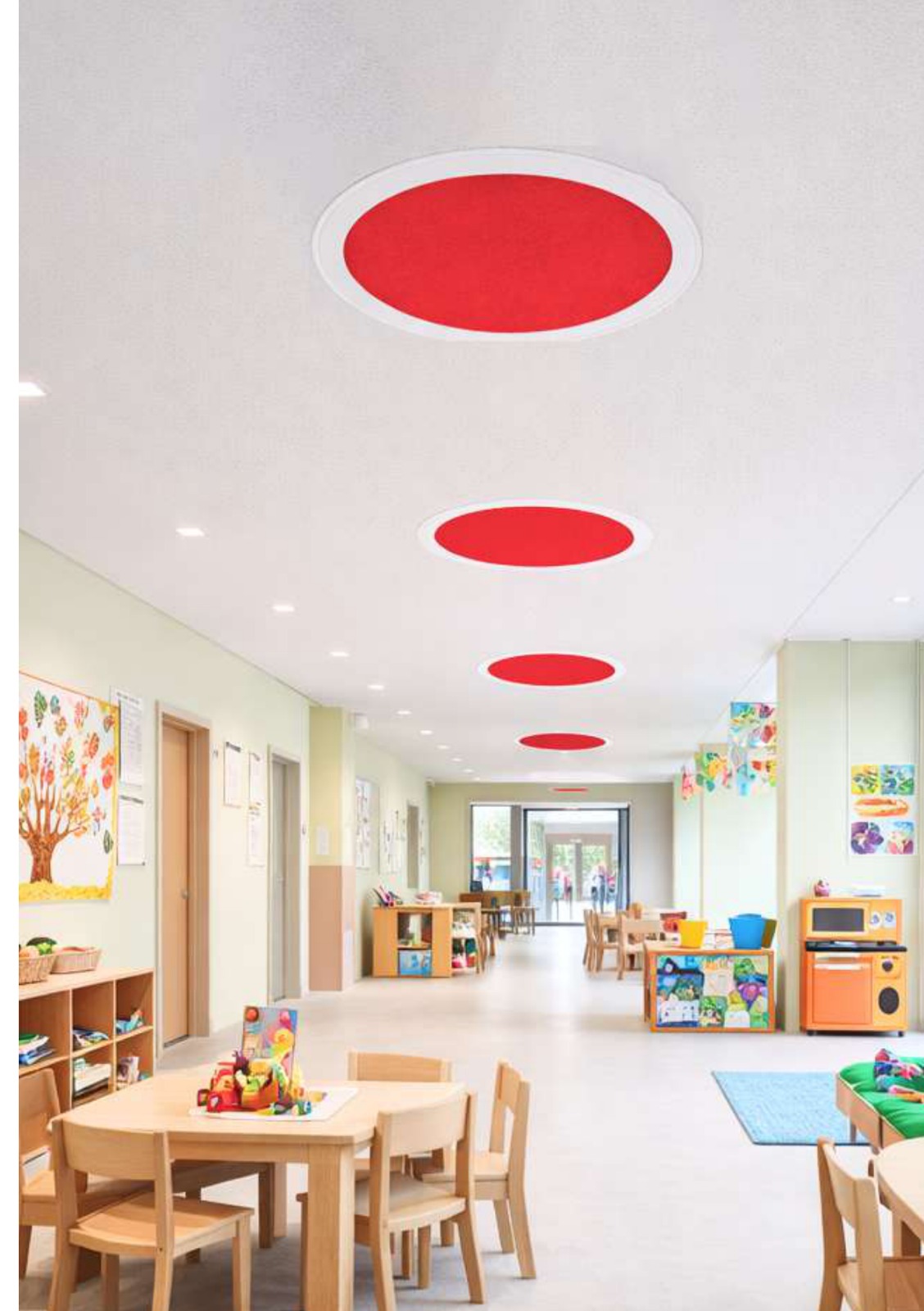

A recessed acoustic ring luminaire, combining architectural lighting with 9 mm acoustic PET felt.
Select a configuration and felt colour before adding to your quote or project.
| Product type | Recessed acoustic ring luminaire |
|---|---|
| Material | Acoustic PET felt |
| Felt thickness | 9 mm |
| Felt colours | 11 catalogue colour codes; see colour chart |
| Mounting | Recessed |
| Light source | Integrated LED |
| Dimming | Dimmable; control protocol not specified in the catalogue |
| Acoustic performance | Sound-absorbing felt; no numerical absorption rating supplied |
| Felt fire classification | Catalogue states ASTM E84-16 Class A for flame spread and smoke development |
| CAL010585 | Power: 53 W; Light output: 5170 lm; Width: 820 mm; Diameter / length: 807 mm; Height: 84 mm |
| CAL010586 | Power: 66 W; Light output: 6460 lm; Width: 1000 mm; Diameter / length: 987 mm; Height: 84 mm |
| CAL010587 | Power: 79 W; Light output: 8210 lm; Width: 1175 mm; Diameter / length: 1162 mm; Height: 84 mm |
| CAL010588 | Power: 92 W; Light output: 9580 lm; Width: 1355 mm; Diameter / length: 1342 mm; Height: 84 mm |
| CAL010589 | Power: 105 W; Light output: 10945 lm; Width: 1520 mm; Diameter / length: 1507 mm; Height: 84 mm |
| CAL010590 | Power: 132 W; Light output: 13680 lm; Width: 1910 mm; Diameter / length: 1897 mm; Height: 84 mm |
